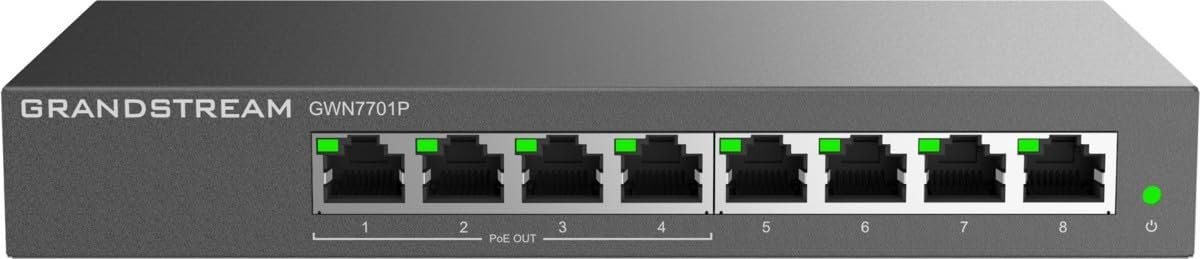

GWN7701P Unmanaged Network Switch

KSh 12,500.00 Excl. of VAT

About this item

  • 8 Gigabit ethernet ports
  • 802.3 af/at compliant with up to 30W on each port
  • Green technology reduces power consumption
  • Support for long cable connections
  • Auto MDI/MDIX crossover for all ports
SKU: 5766977 Category:


GWN7701P Unmanaged Network Switch Features

The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.

Grandstream GWN7701P Key Features:

  • 8× RJ45 Ports for Gigabit connectivity.
  • Green tech reduces power use.
  • LED Indicators for Link, Activity, Speed, and Power.
  • Auto MDI/MDIX for all ports.
  • Storm Control (fixed to 100Mbps) for traffic monitoring.
  • QoS: Supports Default Strict Priority (when present).

In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.

GWN7701P Unmanaged Network Switch

Grandstream GWN7701P Technical Specifications


  • 8× 2.5 gigabit ports
  • PoE ports: 4
  • Enclosure: metal
  • Mount: deskop/wall mount

Standards and Protocols

  • IEEE 802.3i
  • IEEE 802.3u
  • /IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • /IEEE 802.3af
  • IEEE 802.3at

Port Features

  • 8× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation

Network Media

  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

  • 1-4 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 60W Power Budget
  • Overload to cut off the lowestpriority port
  • Priority: Port 4 to Port 1

LED Indicators

  • Per port: Link/Activity Green
  • Per device: Power Green

Mac Address Table

  • 8K entries

Switching Capacity

  • 16Gbps

Jumbo Frame

  • 9KB

Advanced Features

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • Unlink clear FDB Feature
  • IGMP:
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port

Power Adapter

  • External 48-53.5VDC/1.22A

Max Power Consumption by Base System

  • 3W (excluding PoE output power)


  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

  • Unit:190 x 100 x 28mm
  • Package: 230 x 210 x 51mm


  • Unit: 0.44KG
  • Entire Package: 0.92KG


  • 1x Switch
  • 1x Power Adapter
  • 1x Quick Installation Guide (QIG)


  • FCC
  • CE
  • RCM
  • IC
  • UKCA
