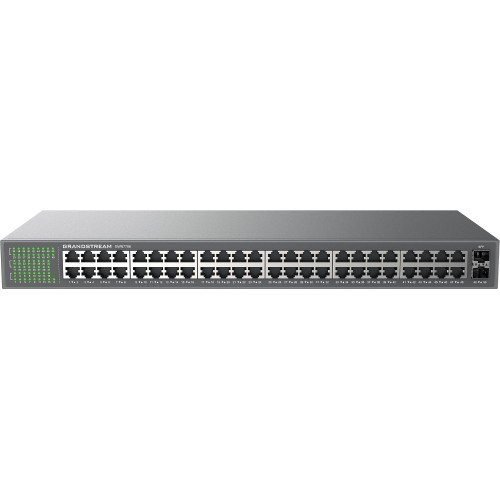

GWN7706 Unmanaged Network Switch 48Port

KSh 28,500.00 Excl. of VAT

Key Features

  • 24 Gigabit ports
  • Green tech saves power
  • Auto MDI/MDIX crossover for all ports
SKU: 7124 Category:


GWN7706 Unmanaged Network Switch 48Port Features

The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.

Grandstream GWN7706 Key Features:

  • 48× gigabit ports.
  • Green tech reduces power use.
  • LED Indicators for Link, Activity, Speed, and Power.
  • Auto MDI/MDIX for all ports.
  • Storm Control (fixed to 100Mbps) for traffic monitoring.
  • QoS: Supports Default Strict Priority (when present).

In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.

The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses

GWN7706 Unmanaged Network Switch 48Port

Grandstream GWN7706 Technical Specifications


  • Gigabit Ports 48
  • Enclosure: Metal
  • Mounting: Desktop/ Rack-Mount

Standards and Protocols

  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p

Port Features

  • 48× 10/100/1000 Mbps RJ-45 Ports
  • 2× SFP Fiber Ports
  • AUTO Negotiation, AUTO MDI/MDIX

Network Media

  • 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex

LED Indicators

  • Per port: Link/Activity Green
  • Per device: Power Green

Mac Address Table

  • 16K

Switching Capacity

  • 100Gbps

Jumbo Frame

  • 9KB

Advanced Features

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS

Power Adapter

  • Internal 100-240V AC,50/60Hz,40W
  • Max Power Consumption by Base System: 30W@220V/50Hz


  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing


  • Unit: 440 x 200 x 44mm
  • Package: 500*335*89mm


  • Unit: 2.80Kg
  • Entire Package: 3.60Kg


  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x GND Cable
  • 1x QIG


  • FCC
  • CE
  • RCM
  • IC
  • UKCA
